ST-Amp
Tax included. Shipping calculated at checkout
High-End DAC, Headphone Amp & Preamp in One
The successor to the multi-award-winning CH-Amp, the CH-Amp Signature brings even more to the table – an integrated Hi-Res USB DAC (ESS9038), Bluetooth input, OLED screen with analog VU meter, and a rechargeable CNC-machined aluminum remote control.
Engineered for audiophiles, gamers, and active speaker users who demand complete control and flawless sound.
✅ Key Features:
- USB DAC (ESS9038) – 32bit / 768kHz with ultra-low distortion
- Hi-Res Bluetooth input – wireless audio without compromise
- Gain switch with IEM mode – perfect for all headphones, including sensitive in-ear monitors
- External linear power supply – quieter operation and superior dynamic range
- OLED display with VU meter – clear visual feedback at a glance
- Rechargeable aluminum remote – CNC-machined from a single block
- Compact CNC aluminum chassis – sleek, robust, and premium
🎧 Who is CH-Amp Signature for?
- 🎶 Audiophiles – seeking accurate and natural sound reproduction
- 🎮 Gamers – who want precise positional audio and real-time response
- 🔊 Active speaker users – looking for a top-tier DAC and preamp combo
✨ Premium Experience, Anywhere
Compact yet powerful, CH-Amp Signature can drive everything from sensitive IEMs to demanding planar headphones. Combined with one of the best DAC chipsets available and an external linear power supply, it’s one of the most complete desktop audio solutions on the market today.
🛒 Order now and experience uncompromised sound.
Worldwide shipping. Limited quantities available.
Desktop Fully Balanced DAC / Headphone Amp / Preamp
- Easy to use
- Integrated DAC
- Output power up to 1.85W
- Fully balanced architecture
- Ultra low THD and SNR
- Aluminum chassis
- Compact design
- Pre Out Option

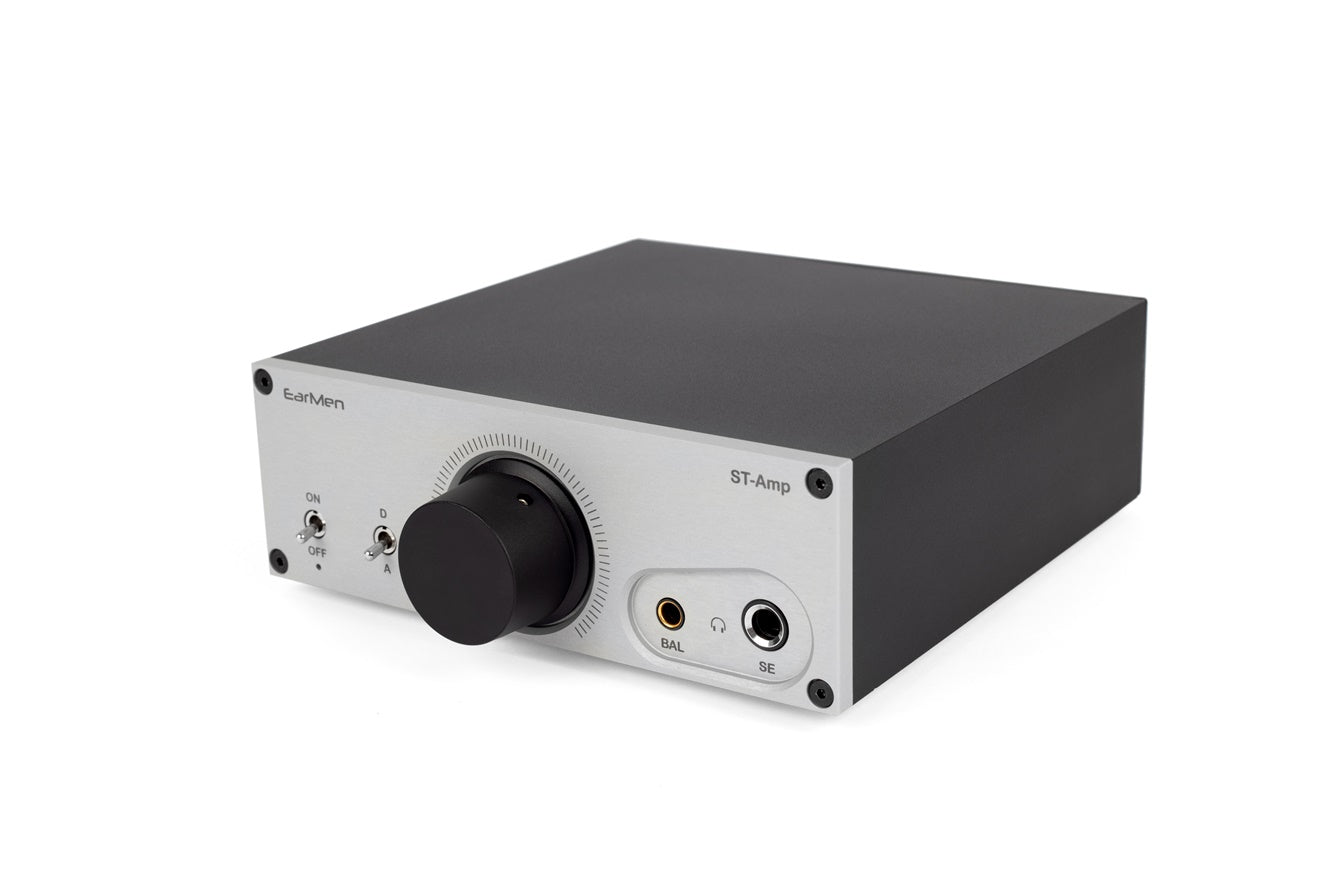

EarMen ST-Amp is a Fully Balanced Desktop Headphone Amplifier with the Pre Amp option and integrated DAC. It has extrodinary sound, whether it is listened to from an integrated DAC or an external, which is great news for all those who want to have everything in one device. The amplifier is carefully made for headphones, so you can not experience unpleasant Pop and Click phenomena when turning it on or off.
Fully Balanced
The amplifier is fully balanced, so your every sound from the input will become even cleaner and better, but that's not all. We use the exact same topology for SE signals, so they become Balanced in a special way with almost no phase shift, additional noise or THD, which is great news because the sound from the SE output does not lag behind the sound from the Balanced output.
The headphones output are powered by two TPA6120 operational amplifiers, which have proven to be excellent in the audiophile world. To make the experience complete, we use a high-quality balanced ALPS potentiometer that contributes to the sound remaining unchanged, and the user satisfied during use.
Sound
ST-AMP affects the sound so that your DAC can be heard better. Although many DACs have excellent specifications, it is not enough for the sound to fully express itself. ST-AMP fully utilizes the maximum dynamics provided by the sound source, so you will not be deprived of any detail. In addition, it very easily controls various headphone drivers, thus improving accuracy, neutrality and transparency.
Amazing Dynamics
Dynamic range above >126dB will guarantee you liveliness and musicality that will allow you to never have the feeling that you are missing something. With perfectly balanced sound and incredible dynamics, you will have the feeling of being in a concert hall.
Pre Out Option

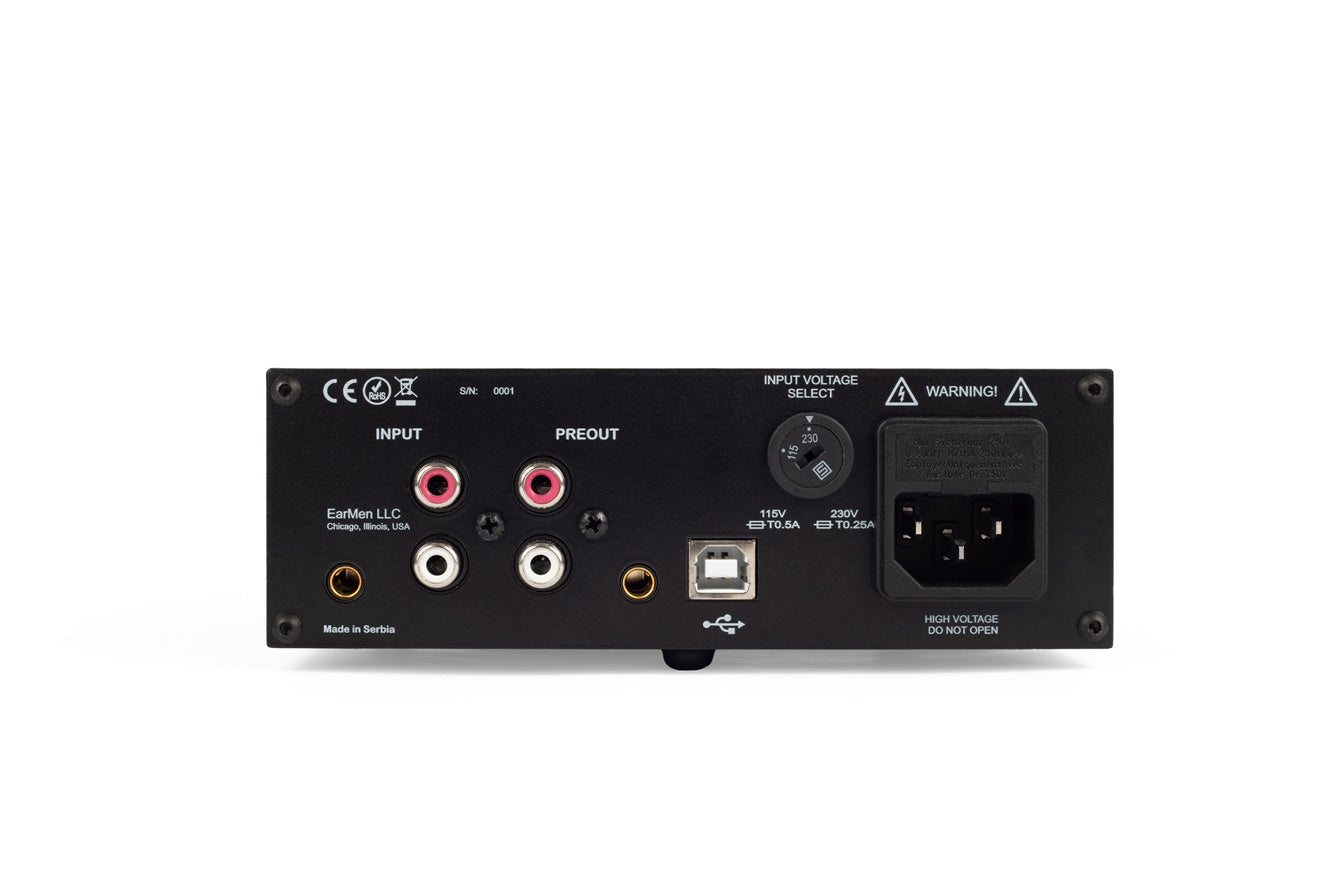

On the back panel of the device we have SE and BAL Pre-Out outputs. This option allows the user to use the ST-Amp as a DAC and preamplifier for a much more powerful system.
Source of your choice
The sound source can be chosen according to your choice. Analog input or Digital/Integrated DAC gives you the freedom to listen to your favorite music from any source.
Ultra Low THD
Low Total Harmonic Distortion is such an important feature and as such we take it very seriously. ST-Amp has Very low Total Harmonic Distortion which will allow you higher power factor, lower peak currents, and higher efficiency without distortions.
Power Supply
At the heart of the device itself is a noiseless linear power supply with great stability, so it can easily provide enough power even for the most demanding headphones. Apart from the special topology of the amplifier, the power supply is worthy of excellent characteristics even at full power, which is often not the case with most amplifiers, so in their specifications you can find measurements but at half power.
EarMen ST-Amp Firmware Upgrade
- EarMen ST-Amp Firmware Upgrade Instruction download here
- EarMen ST-Amp Firmware Updater download here
- EarMen ST-Amp Firmware Rom file download here
User Manual
Specification
| Inputs | RCA Single End Input | |
| Balanced 4.4 mm Input | ||
| Outputs | SE 6.35mm | |
| Balanced 4.4mm | ||
| Pre Outputs | RCA (SE output) | |
| Balanced | ||
| DAC | ES9280 | |
| Audio formats | ||
| DSD | 64 / 128 DoP | |
| DXD | 384/352.5 kHz | |
| PCM | Up to 384 kHz | |
| SE in -SE out | SE in - BAL out | |
| Input | 2V | 2V |
| Output | 4V-0.5W@32 Ohm | 7.75V-1.85W@32Ohm |
| THD+N | 0.0025% | 0.003% |
| SNR [A-W] | >117dB | >121dB |
| Dynamic range | >117,9dB | >121dB |
| Freq. response | ±0.003dB | ±0.007dB |
| BAL in - SE out | BAL in - BAL out | |
| Input | 4V | 4V |
| Output | 4V-0.5W@32 Ohm | 7.75V-1.85W@32Ohm |
| THD+N | 0.0025% | 0.002% |
| SNR [A-W] | >118dB | >125dB |
| Dynamic range | >118dB | >126dB |
| Freq. response | ±0.003dB | ±0.006dB |
| Dimensions | 170x30x150 mm / 6,69"x1,18"x5,90" | |||||||
| Weight | 1100 gr / 2,42lbs | |||||||
